![Zinkanod axel 1" (25,4mm), R800503](http://www.anodefactory.pl/cdn/shop/products/R800503_430x430.png?v=1648134319)

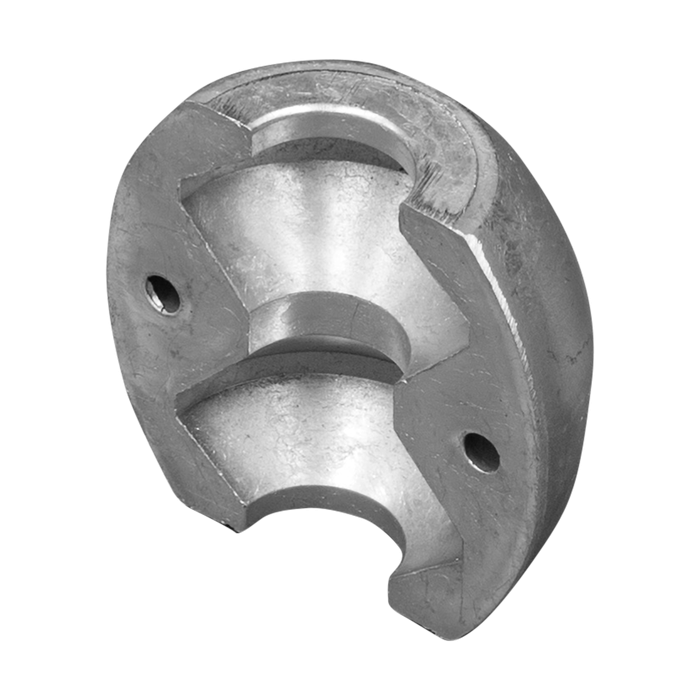

Zinc anode Shaft 1 "(1inch), R800503
Article: R800503
PCS | Discount | Price |
---|---|---|
5 | 5 % | 122,55 zł /st |
10 | 10 % | 116,10 zł /st |
20 | 15 % | 109,65 zł /st |
50 | 20 % | 103,20 zł /st |
Product description
Product specification
Shaft anode 1 " propeller shaft, Zinc
Material: Zinc
Alloy : MIL-DTL-18001L - Zn
Article: R800503
- Weight : 0.5 KG/1.10 lbs
- For propeller shaft: 1 "
CODE |
kg |
lbs |
|
Ø1 |
h |
Ø |
Ø shaft |
00503 |
0.48 |
1.06 |
mm inch |
25.40 1.00 |
56 2.20 |
58 2.28 |
Ø 1'' |
Application areas:
- Propeller shaft
- Round objects
Shaft anodes of Zinc used mainly in seawater and brackish water. Zinc anodes can be used in brackish water if the resistivity is not too high (approx. 1.5 Ωm). Zinc is more chemically stable than Aluminum and is therefore preferred by many in weakly brackish water environments.
The term "zinc" has become synonymous with sacrificial anodes, as zinc was the original material used for this purpose. But other metals, such as aluminum and magnesium, also act as sacrificial anodes.
With over 30 years of experience, you as a customer can always feel safe with our products. We manufacture everything according to international standards and industry guidelines. Each batch of anodes undergoes careful testing and quality assurance, as it has been for over 30 years ...
Are you unsure of the type of material to use? Ask us, we can!
Technical data
- Capacity: 780 Ah / kg(353.80 Ah / lbs)
- Consumption: 11.2 kg / A year(24.69 lbs / A year)
- Specific gravity: 7.13 kg / dm³(15.72 lbs / dm³)
- Potential: -1 030 mV rel Ag / AgCl in seawater
Typical chemical composition, MIL-DTL-18001L - Zn
Material | % of weight |
Aluminum (Al) | min 0.10, max 0.5 |
Cadmium (Cd) | min 0.025, max 0.07 |
Steel (Fe) | max 0.005 |
Copper (Cu) | max 0.005 |
Lead (Pb) | max 0.006 |
Andra (each) | max 0.10 |
Zinc (Zn) | Remaining |
Information
Protect your investments from corrosion, check the product description for more information.
